Hahn&Sohn Vibrating plate HCH95-GX160
Weight: 93 kg
Max. Engine power: 3.6 kW
Nominal power: 2.9 kW
Lift volume: 163 cm³
Fuel: Unleaded gasoline (ROZ 95)

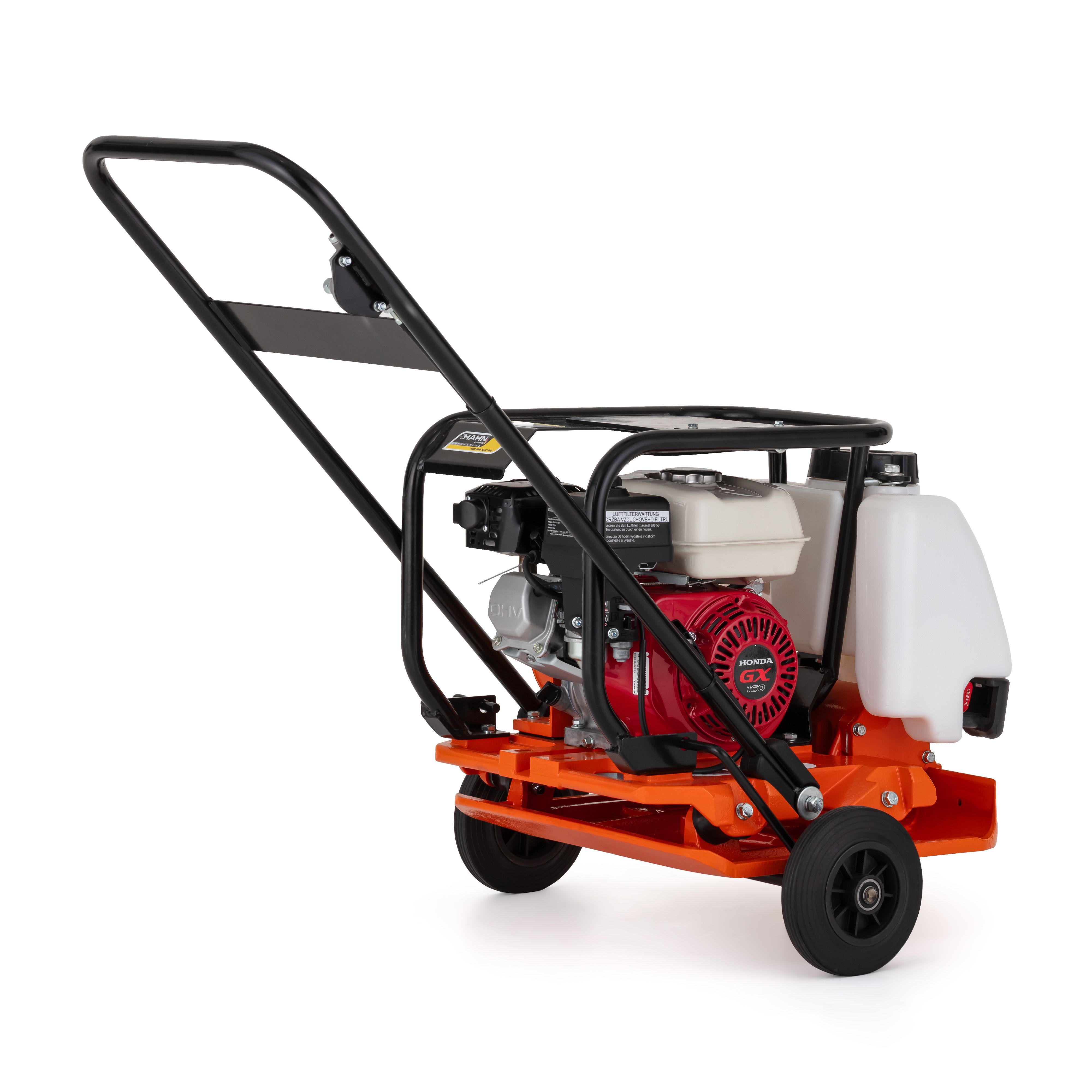

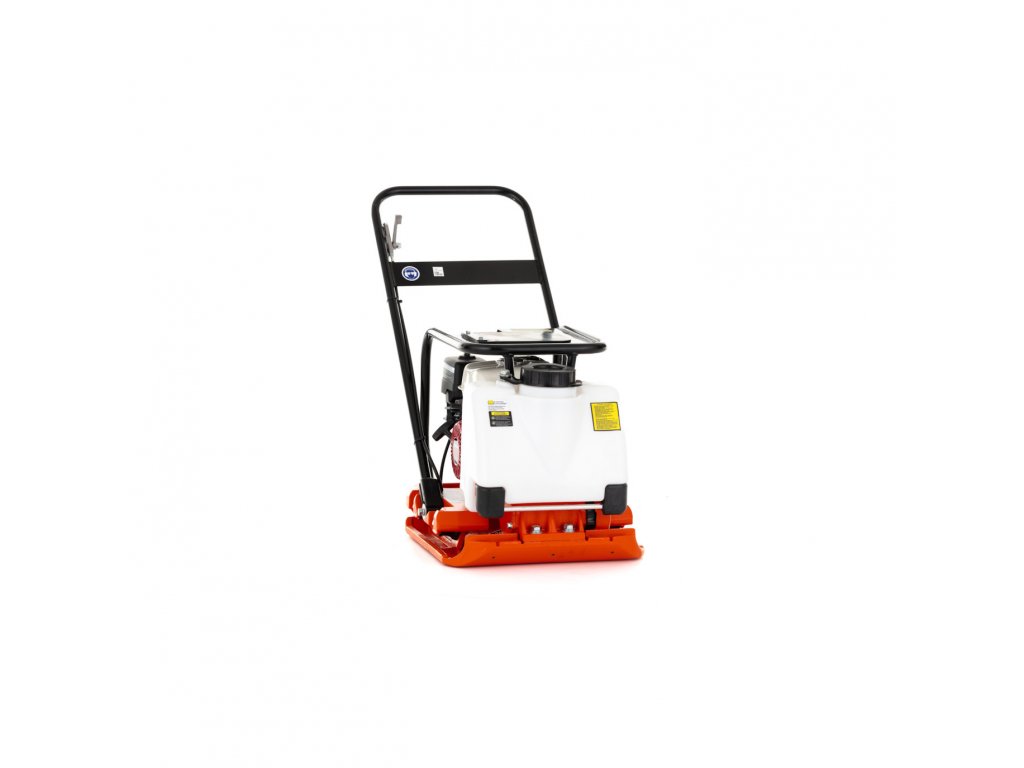

Hahn&Sohn Vibrating plate Honda HCH95-GX160
Vibrating plates are among the most heavily loaded construction machines, so we focus on simple and robust design solutions. The HC95 is based on a heavy-duty, solid vibrating plate and a durable Honda engine with a maximum output of 3.6 kW and a rated power of 2.9 kW. To increase working comfort, we have equipped the unit with transport wheels.
- Vibrating plate suitable for compacting a wide range of substrates
- Reliable, powerful gasoline engine
- Transport wheels and ergonomic handle ensure trouble-free and easy transport
- Vibration protection to protect the motor and for a long service life
- Water tank for hot surface compaction
Additional parameters
| Category: | Wacker plates & Vibrating tamper |
|---|---|
| Weight: | 93 kg |
| Gewicht: | 93 kg |
| Stoß-/Vibrationsfrequenz: | 6000 vpm |
| Zentrifugalkraft: | 21 kN |
| Maximale Performance: | 315 m²/h |
| Abmessung der Platte: | 530x540 mm |
| Bewegungsgeschwindigkeit: | ⩽33 cm/s |
| Gesamtabmessungen: | 1070x520x810 mm |
| Motor: | Einzelzylinder Honda Benzinmotor |
| Maximales Drehmoment: | 10.3 Nm / 2500 rpm |
| Maximale Leistung: | 3,6 kW |
| Nennleistung: | 2,9 kW |
| Hubraum cm³: | 163 cm³ |
| Motortyp:: | 4-Takt, OHV, Benzinmotor |
| Maximaler Kraftstoffverbrauch: | ≤1.4 l/hod |
| Tankvolumen: |
