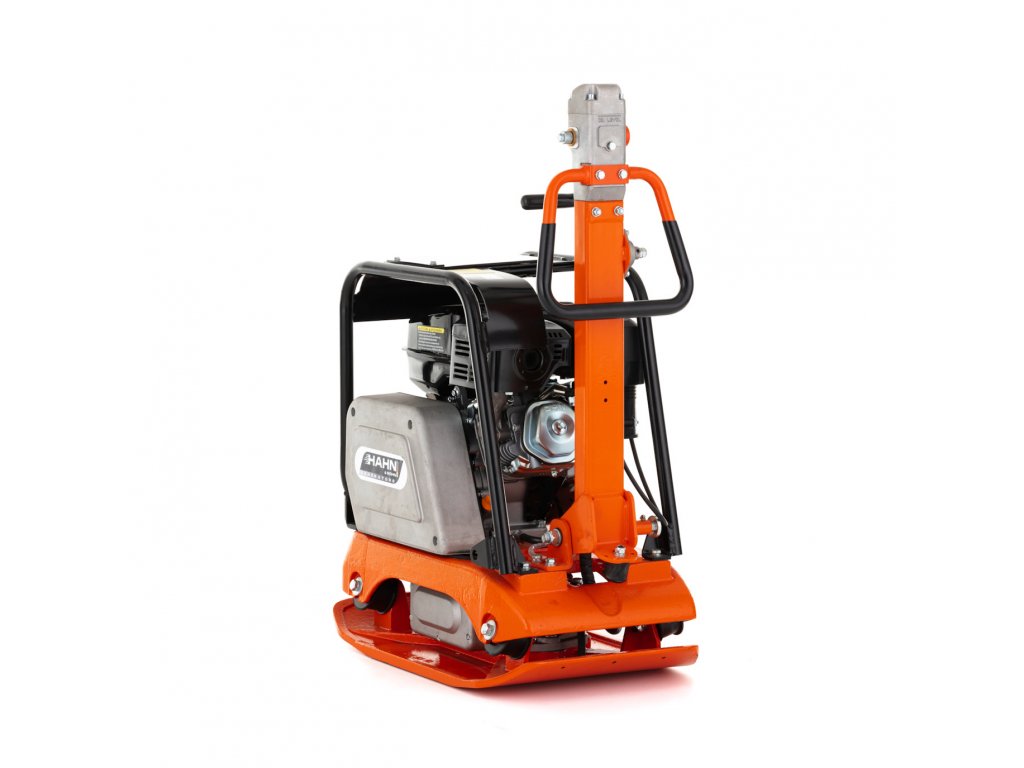

Hahn&Sohn Vibrating plate Honda HCH170-GX270
Weight: 169 kg
Maximum power: 6.0 kW
Nominal power: 5,8 kW
Lift volume: 270 cm³
Fuel: Unleaded gasoline (ROZ 95)
Hahn&Sohn Vibrating plate Honda HCH170-GX270
Vibrating plates are among the most heavily loaded construction machines, which is why we focus on simple and solid construction solutions in our production. The most popular model in our range, the HC170, is based on a solid vibrating plate for hard work and a durable motor with an output of 6 kW.
- Vibrating plate suitable for compacting a wide range of substrates
- Reliable, powerful Honda gasoline engine
- Ergonomic handle for comfortable working
- Vibration protection to protect the motor and for a long service life
Additional parameters
| Category: | Wacker plates & Vibrating tamper |
|---|---|
| Weight: | 170 kg |
| Stoß-/Vibrationsfrequenz: | 5400 vpm |
| Zentrifugalkraft: | 30.5 kN |
| Gewicht: | 169 kg |
| Maximale Performance: | 650 m²/h |
| Die Größe der Platte: | 700x435 mm |
| Bewegungsgeschwindigkeit: | 25 m/min |
| Transportabmessung: | 725x650x1150 mm |
| Max. Abmessung: | 1170x650x920 mm |
| Kraftstofftank: | 5,3 l |
| Maximales Drehmoment: | 16.3 Nm / 2500 rpm |
| Hubraum: | 270 cm³ |
| Motor: | 4-Takt, OHV, Benzinmotor |
| Anzahl der Zylinder: | Einzylinder |
| Nennleistung: | 6 kW |
| Kühlung: | Luftgekühlt |
| Ölmenge L: | 1.1 l |
